Euphoria

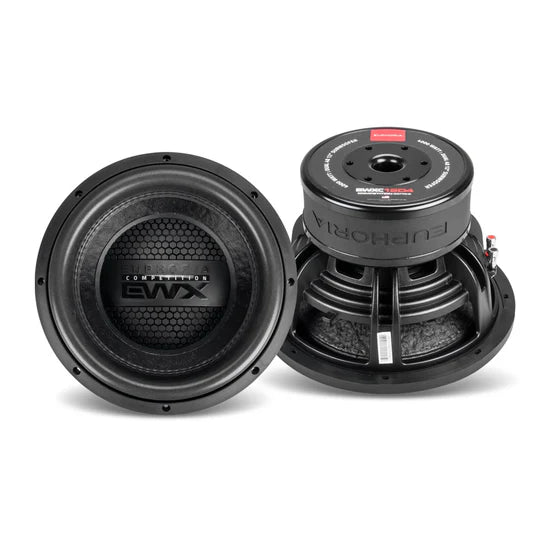

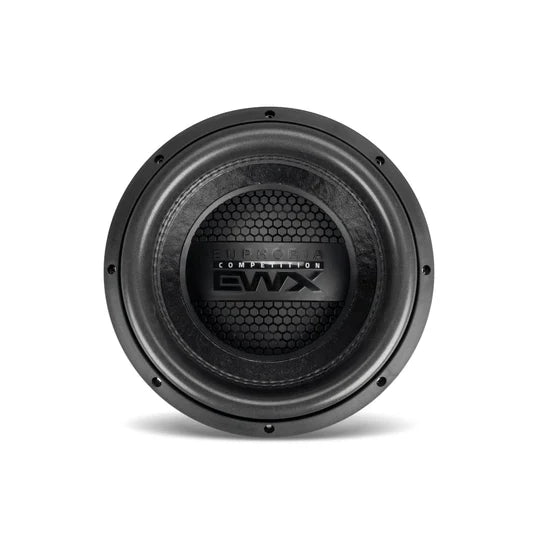

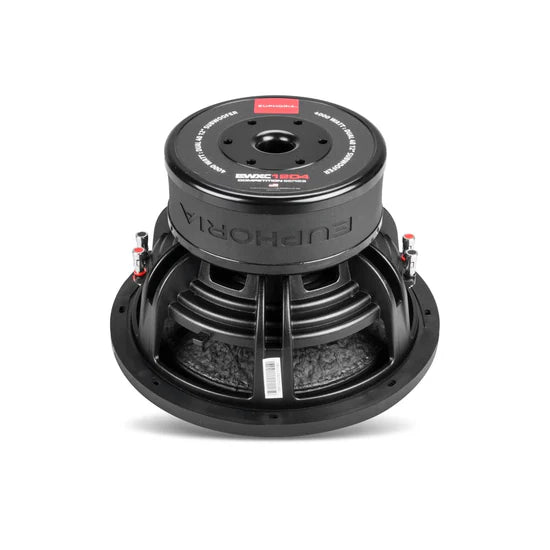

EUPHORIA 12" 4000 WATT WOOFER DVC 4 OHM
EUPHORIA 12" 4000 WATT WOOFER DVC 4 OHM
Regular price
$569.99 USD
Regular price
Sale price
$569.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- High Temperature Voice Coil
- 120 oz. Ceramic Ferrite Magnet ( EWX8D2/8D4 Only )
- 145 oz. Ceramic Ferrite Magnet
- High Grade Low Carbon Steel Top & Bottom Plate
- Design to optimize SPL Performance
- 1.5” High Roll Foam Surround
- Large Gauge Push Button Speaker Terminals
- Available in Dual 2Ω or Dual 4Ω Voice Coil
| Structure | 12” (304mm) |
|---|---|
| Max Power | 4000 Watts |
| Nominal Power | 2000 Watts |
| Impedance | Dual 4Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 34.632Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω + 3.2Ω |
| Mechanical Quality Factor (Qms) | 4.912 |
| Electrical Quality Factor (Qes) | 1.088 |
| Total Quality Factor (Qts) | 0.891 |
| Equivalent Air Volume to Cms (Vas) | 26.084L |
| Force Factor (BL) | 20.056 |
| Mass of Diaphragm/Coil (Mms) | 314.235 g |
| Sound Pressure Level (SPL) | 81.9dB |
